Hex Winding Check

Description Specs & Sizing

For Bamboo Rods

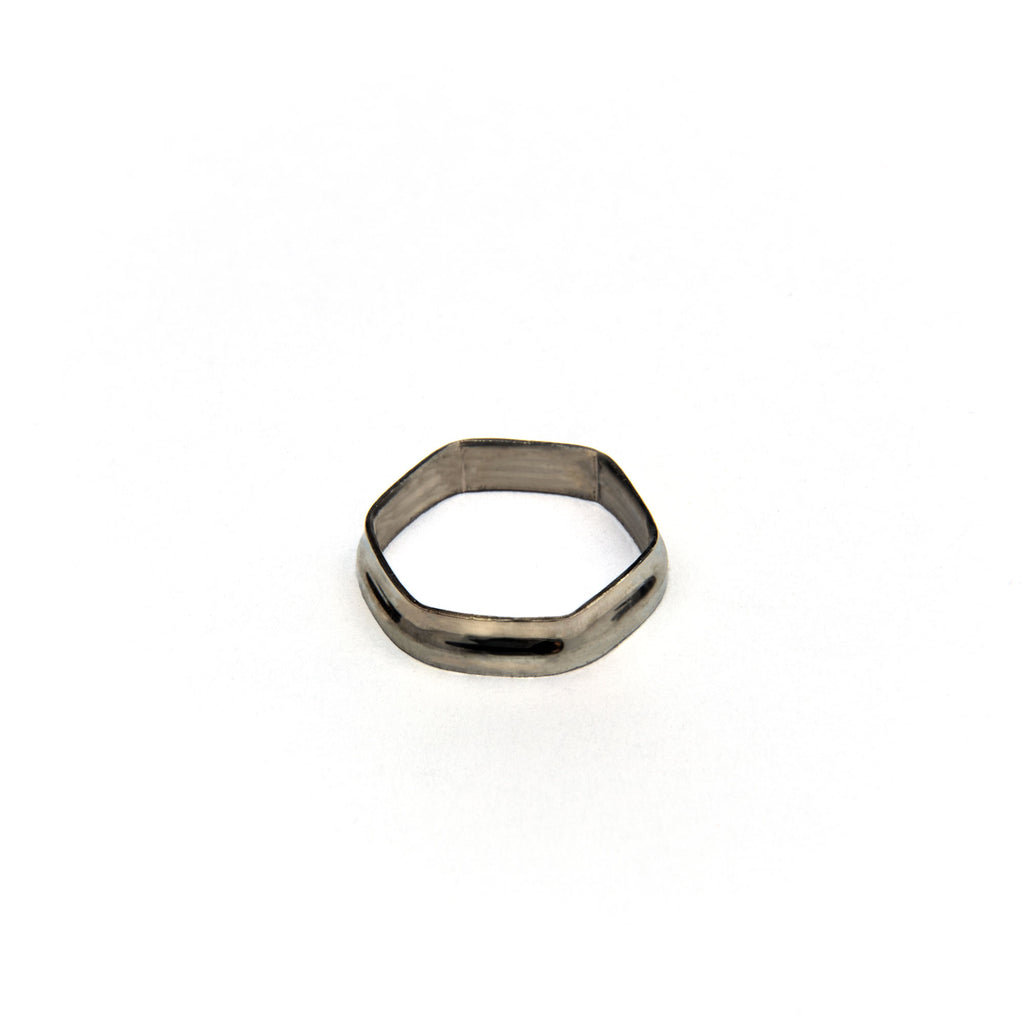

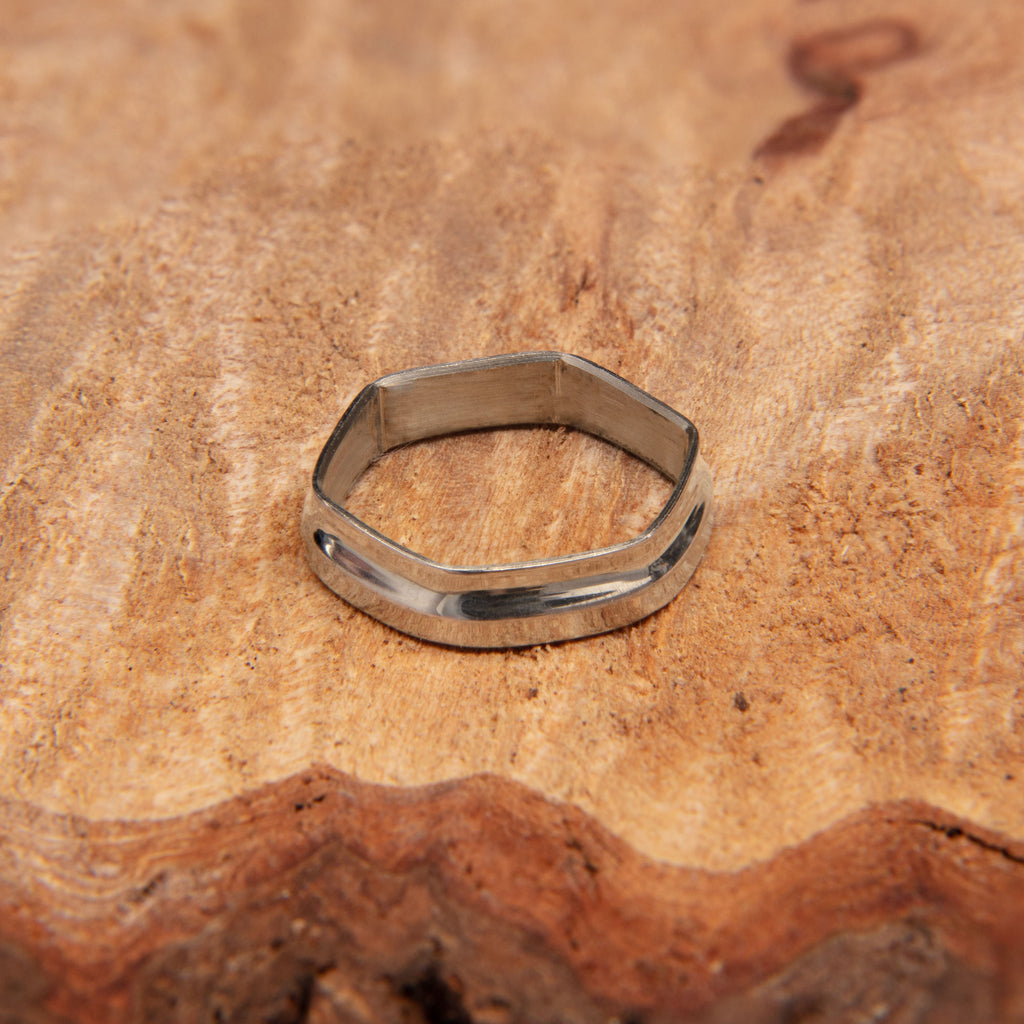

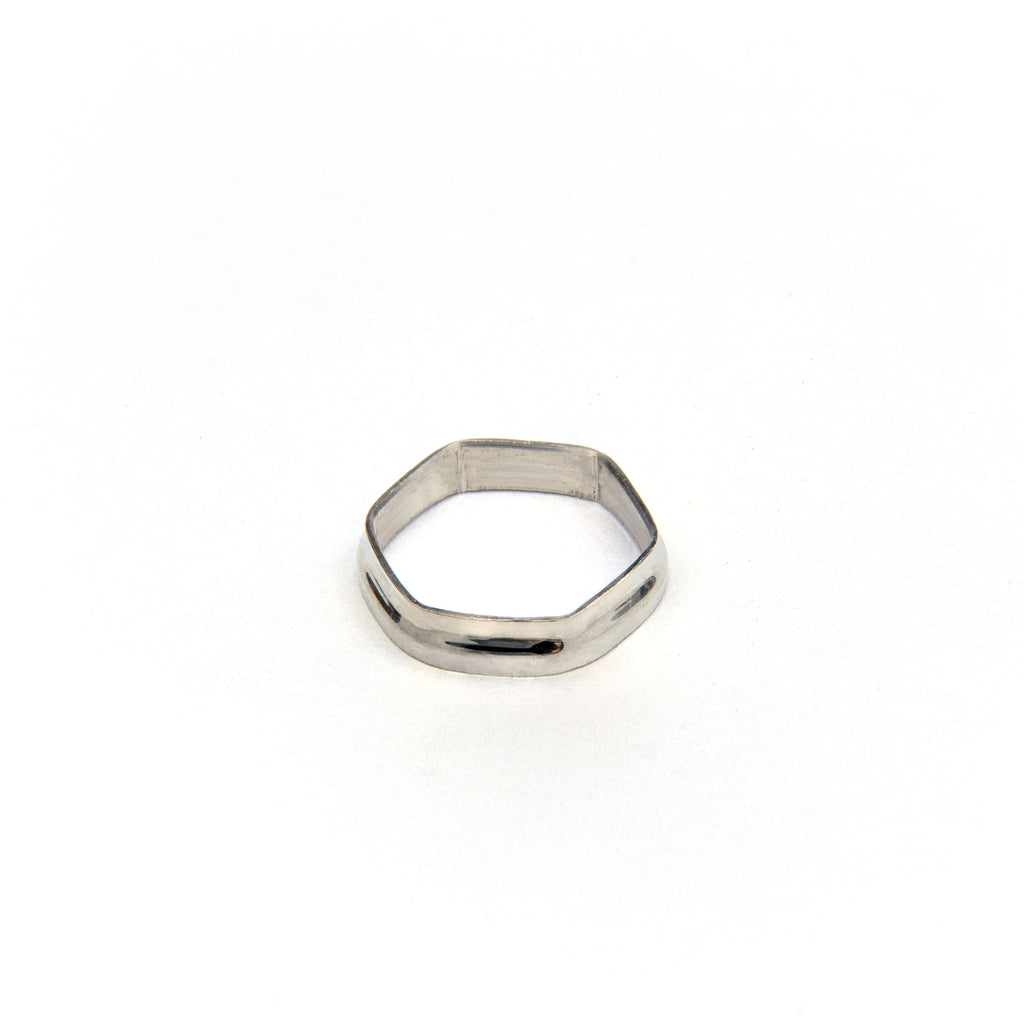

These mirror buffed Hex Winding Checks make a nice transition from the hex rod to the cork. They are available in Black Nickel and Silver Nickel in sizes 19- 28. See sizing chart.

Note: Black Nickel finish is not recommended for saltwater use.

Winding Check Specs & Sizing Chart

	Hex
diameterdia	Flat to Flat		Point to Point
size	in	mm	in	mm
19	0.26	6.60	0.294	7.47
20	0.289	7.34	0.31	7.87
21	0.302	7.67	0.325	8.25
22	0.318	8.08	0.34	8.64
23	0.333	8.46	0.355	9.02
24	0.347	8.81	0.372	9.45
25	0.363	9.22	0.388	9.86
26	0.377	9.58	0.403	10.24
27	0.392	9.96	0.418	10.62
28	0.408	10.36	0.435	11.05

	Plain
diameterdia	Inside Diameter
size	in	mm
19	0.190	4.83
20	0.200	5.08
21	0.210	5.33
22	0.220	5.59
23	0.230	5.84
24	0.240	6.10
25	0.250	6.35
26	0.260	6.60
27	0.270	6.86
28	0.280	7.11

	Hex				Plain
diameterdia	Flat to Flat		Point to Point		Inside Diameter
size	in	mm	in	mm	in	mm
19	0.26	6.60	0.294	7.47	0.190	4.83
20	0.289	7.34	0.31	7.87	0.200	5.08
21	0.302	7.67	0.325	8.25	0.210	5.33
22	0.318	8.08	0.34	8.64	0.220	5.59
23	0.333	8.46	0.355	9.02	0.230	5.84
24	0.347	8.81	0.372	9.45	0.240	6.10
25	0.363	9.22	0.388	9.86	0.250	6.35
26	0.377	9.58	0.403	10.24	0.260	6.60
27	0.392	9.96	0.418	10.62	0.270	6.86
28	0.408	10.36	0.435	11.05	0.280	7.11

	Hex				Plain
diameterdia	Flat to Flat		Point to Point		Inside Diameter
size	in	mm	in	mm	in	mm
19	0.26	6.60	0.294	7.47	0.190	4.83
20	0.289	7.34	0.31	7.87	0.200	5.08
21	0.302	7.67	0.325	8.25	0.210	5.33
22	0.318	8.08	0.34	8.64	0.220	5.59
23	0.333	8.46	0.355	9.02	0.230	5.84
24	0.347	8.81	0.372	9.45	0.240	6.10
25	0.363	9.22	0.388	9.86	0.250	6.35
26	0.377	9.58	0.403	10.24	0.260	6.60
27	0.392	9.96	0.418	10.62	0.270	6.86
28	0.408	10.36	0.435	11.05	0.280	7.11

"I have chosen Mike's Snake Brand guides for my premier rods. Aesthetically they look wonderful with full radius contours. The feet are flat and burr-free... just tape the guide on and wrap, so it saves time. The wire has a significantly smaller OD., saving on weight, has less drag on the fly line, and gives a slender, elegant appearance, yet the guide is as strong or stronger than the old chrome stainless... Plain and simple, Snake Brand guides are superior products and should seriously be considered an integral part of any high-quality rod."
